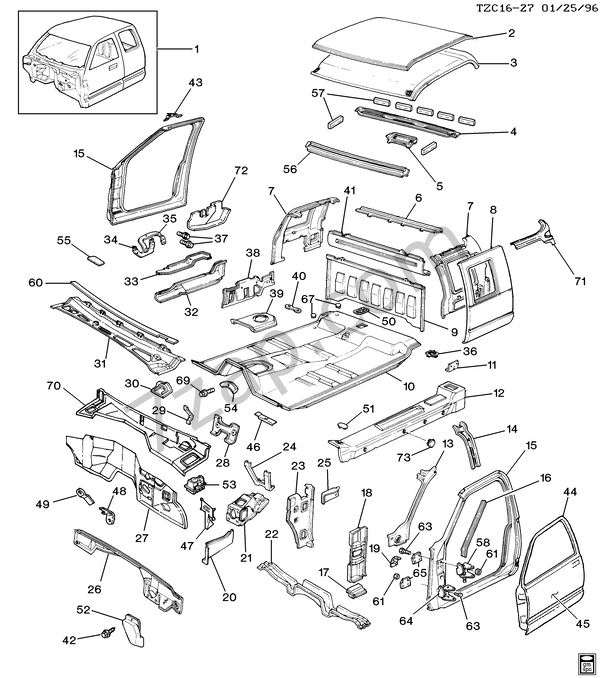

| PNC | Código de la pieza | Título | Cantidad | Información |
i |
|---|
| 1 | | BODY,(SERV PARTIAL)(SERVICE CABS FOR 1992-1993 WILL NO LONGER BE AVAILABLE.) | | |
| 2 | 15590674 | PANEL,RF OTR(DLR TO DRILL MARKER LAMP HOLES AS REQ)(USED W/ AND W/O HIGH MT STOP LAMP) | 01 |
|
| 3 | 15992695 | PANEL,RF INR(**VPI 1-877-846-8243) | 01 |
|
| 4 | 15591845 | BOW,RF PNL(**VPI 1-877-846-8243) | 01 |
|
| 5 | 15956439 | BRACKET,DM LP(RR)(**VPI 1-877-846-8243) | 01 |
|
| 6 | 15574293 | PANEL,RF RR HDR(STEEL)(**VPI 1-877-846-8243) | 01 |
|
| 7 | 15018972 | PANEL,BODY SI INR UPR(**VPI 1-877-846-8243) | 01 |
|
| 7 | 15976500 | PANEL,BODY SI INR UPR(**VPI 1-877-846-8243) | 01 |
|
| 8 | 15607107 | PANEL,BODY SI OTR | 01 |
|
| 8 | 15607108 | PANEL,BODY SI OTR | 01 |
|
| 9 | 15646494 | PANEL,BODY RR OTR | 01 |
|
| 10 | 15984251 | PANEL,F/FLR(INCL ITEM #46) | 01 |
|
| 11 | 15545234 | REINFORCEMENT,RKR INR PNL(**VPI 1-877-846-8243) | 02 |
|
| 12 | 15682381 | PANEL,RKR INR(**VPI 1-877-846-8243) | 01 |
|
| 12 | 15703522 | PANEL,RKR INR(**VPI 1-877-846-8243) | 01 |
|
| 13 | 15646571 | REINFORCEMENT,FRT S/D OPG FRM(16.150)(**VPI 1-877-846-8243) | 01 |
|
| 13 | 15703523 | REINFORCEMENT,FRT S/D OPG FRM(16.150)(**VPI 1-877-846-8243) | 01 |
|
| 14 | 15697105 | PLATE,ST BELT UPR ANC | 01 |
|
| 14 | 15697105 | PLATE,ST BELT UPR ANC | 01 |
|
| 14 | 15697105 | PLATE,ST BELT UPR ANC | 01 |
|
| 14 | 15697105 | PLATE,ST BELT UPR ANC | 01 |
|
| 14 | 15697105 | PLATE,ST BELT UPR ANC | 01 |
|
| 14 | 15697105 | PLATE,ST BELT UPR ANC | 01 |
|
| 14 | 15697105 | PLATE,ST BELT UPR ANC | 01 |
|
| 14 | 15697105 | PLATE,ST BELT UPR ANC | 01 |
|
| 14 | 15697105 | PLATE,ST BELT UPR ANC | 01 |
|
| 14 | 15697106 | PLATE,ST BELT UPR ANC(**VPI 1-877-846-8243) | 01 |
|
| 14 | 15697106 | PLATE,ST BELT UPR ANC(**VPI 1-877-846-8243) | 01 |
|
| 14 | 15697106 | PLATE,ST BELT UPR ANC(**VPI 1-877-846-8243) | 01 |
|
| 14 | 15697106 | PLATE,ST BELT UPR ANC(**VPI 1-877-846-8243) | 01 |
|
| 14 | 15697106 | PLATE,ST BELT UPR ANC(**VPI 1-877-846-8243) | 01 |
|
| 14 | 15697106 | PLATE,ST BELT UPR ANC(**VPI 1-877-846-8243) | 01 |
|
| 14 | 15697106 | PLATE,ST BELT UPR ANC(**VPI 1-877-846-8243) | 01 |
|
| 14 | 15697106 | PLATE,ST BELT UPR ANC(**VPI 1-877-846-8243) | 01 |
|
| 14 | 15697106 | PLATE,ST BELT UPR ANC(**VPI 1-877-846-8243) | 01 |
|
| 15 | 12375589 | FRAME,FRT S/D OPG | 01 |
|
| 15 | 12375589 | FRAME,FRT S/D OPG(INCLS 16,58,64) | 01 |
|
| 15 | 12375590 | FRAME,FRT S/D OPG | 01 |
|
| 15 | 12375590 | FRAME,FRT S/D OPG(INCLS 16,58,64) | 01 |
|
| 16 | 15591847 | BRACKET,FRT S/D W/STR RET(PART OF 15)(16.642)(**VPI 1-877-846-8243) | 01 |
|
| 16 | 15591848 | BRACKET,FRT S/D W/STR RET(PART OF 15)(16.642)(**VPI 1-877-846-8243) | 01 |
|
| 17 | | PANEL,FRT S/D OPG FRM FIL | | |
| 18 | | REINFORCEMENT,FRT S/D OPG HGE, PART OF 15 | | |
| 19 | 15607047 | BRACKET,I/P OTR(**VPI 1-877-846-8243) | 01 |
|
| 19 | 15607048 | BRACKET,I/P OTR(**VPI 1-877-846-8243) | 01 |
|
| 20 | 15523211 | PANEL,PLNM SI(**VPI 1-877-846-8243) | 01 |
|
| 21 | 15660206 | BRACKET,BRK PED | 01 |
|
| 22 | 15611299 | SILL,U/B CR(**VPI 1-877-846-8243) | 01 |
|
| 23 | 15971842 | PANEL,COWL SI(**VPI 1-877-846-8243) | 01 |
|
| 23 | 15998426 | PANEL,COWL SI(**VPI 1-877-846-8243) | 01 |
|
| 24 | 15588800 | BRACKET,STRG COL | 01 |
|
| 25 | 15998379 | BRACKET,F/FDR UPR(RR UPR)(**VPI 1-877-846-8243) | 01 |
|
| 25 | 15998380 | BRACKET,F/FDR UPR(RR UPR)(**VPI 1-877-846-8243) | 01 |
|
| 26 | 15731214 | PANEL,PLNM(**VPI 1-877-846-8243) | 01 |
|
| 27 | 15675979 | PANEL,DA | 01 |
|
| 28 | 15530909 | REINFORCEMENT,PLNM PNL(**VPI 1-877-846-8243) | 01 |
|
| 29 | 15545200 | BRACKET,I/P CTR SUPT | 01 |
|
| 30 | 15611292 | BRACKET,CLU PED(TO SUPPORT) | 01 |
|
| 31 | 15646499 | PANEL,PLNM UPR(**VPI 1-877-846-8243) | 01 |
|
| 32 | 15153751 | EXTENSION,FRT S/D OPG FRM(16.150)(**VPI 1-877-846-8243) | 01 |
|
| 32 | 15153752 | EXTENSION,FRT S/D OPG FRM(16.150)(**VPI 1-877-846-8243) | 01 |
|
| 33 | 15153749 | FILLER,RKR INR PNL(WELDED TO RKR PNL) | |
|
| 33 | 15153750 | FILLER,RKR INR PNL(WELDED TO RKR PNL) | |
|
| 35 | | REINFORCEMENT,FLR PNL TRFER CASE CONT OPG UPR | | |
| 36 | 15523560 | PLUG,RKR RR INR PNL HOLE(10.000X.00X9.00PL)(RECTANGULAR SHAPE)(**VPI 1-877-846-8243) | 04 |
|
| 37 | 11508256 | BOLT,HFH,SELF-TAP,M4.2X1.4X13,11.6THD,8.5 O.D.,GM6010M,POR(ACDelco #11508256) | AR |
|
| 38 | 15693719 | PANEL,BODY SI INR LWR(**VPI 1-877-846-8243)(FOR PROPER FIT DEALER MUST ALSO REPL UPR PANEL) | 01 |
|
| 38 | 15693720 | PANEL,BODY SI INR LWR(**VPI 1-877-846-8243)(FOR PROPER FIT DEALER MUST ALSO REPL UPR PANEL(15976500)) | 01 |
|
| 39 | | REINFORCEMENT,FLR PNL M/TRNS CONT OPG | | |
| 40 | 15611291 | SUPPORT,F/FLR CNSL | 01 |
|
| 41 | 15569523 | PANEL,BODY RR INR(STEEL)(**VPI 1-877-846-8243) | 01 |
|
| 42 | 15714276 | SCREW,HWH,W/FL WA,SELF TAP,M4.2X1.41X18,12.5 O.D.,6010M,PS(PLNM DRN TUBE)(8.977) | AR |
|
| 44 | 12387770 | DOOR,FRT SI(WHEN REPL DR W/DF2 MIR,ALSO ORDER 2-15964642 BUSH & 2-15964640 BOLTS)(1992 DRS MAY NEED 15650145 CDT,15620399 VLV,15991405 W/STR)(INCL ITEM #45)(W/O HINGES)(WHEN REPL 92-95 DRS IT WILL BE REQD TO CUT OFF DEPRESSION AREA ON TOP OF ORIGINAL DESIGN INNER MTG PANEL)(USED T/W 88979797 & 12475076) | 01 |
|
| 44 | 12387769 | DOOR,FRT SI(WHEN REPL DR W/DF2 MIR,ALSO ORDER 2-15964642 BUSH & 2-15964640 BOLTS)(1992 DRS MAY NEED 15650145 CDT,15620399 VLV,15991405 W/STR)(INCL ITEM #45)(W/O HINGES)(WHEN REPL 92-95 DRS IT WILL BE REQD TO CUT OFF DEPRESSION AREA ON TOP OF ORIGINAL DESIGN INNER MTG PANEL)(USED T/W 88979795 & 12475075 HINGE KITS) | 01 |
|
| 45 | 15003413 | PANEL,FRT S/D OTR(PART OF 44) | 01 |
|
| 45 | 15003414 | PANEL,FRT S/D OTR(PART OF 44) | 01 |
|
| 46 | 15558302 | BRACKET,EXH MANIF PIPE H/SHLD(PART OF 10)(**VPI 1-877-846-8243) | 01 |
|
| 47 | 15607103 | RETAINER,PLNM S/PNL WAT DFL(PART OF 53)(LWR WATER DEFLECTOR)(9.264) | 08 |
|
| 48 | 15611304 | BRACKET,FRT W/H PNL LWR(**VPI 1-877-846-8243) | 01 |
|
| 48 | 15660131 | BRACKET,FRT W/H PNL LWR(**VPI 1-877-846-8243) | 01 |
|
| 49 | 15611307 | BRACKET,FRT W/H PNL UPR(**VPI 1-877-846-8243) | 02 |
|
| 50 | 15523560 | PLUG,FLR PNL DRN HOLE(10.000X.00X9.00PL)(RECTANGULAR SHAPE)(16.603)(**VPI 1-877-846-8243) | 01 |
|
| 51 | 15523559 | PLUG,RKR INR PNL HOLE(FRT)(**VPI 1-877-846-8243) | 02 |
|
| 52 | 15549485 | TUBE,PLNM DRN(**VPI 1-877-846-8243) | 01 |
|
| 52 | 15549486 | TUBE,PLNM DRN(16.550)(**VPI 1-877-846-8243) | 01 |
|
| 53 | 15607101 | DEFLECTOR,PLNM S/PNL WAT(INCLS 47) | 01 |
|
| 53 | 15607102 | DEFLECTOR,PLNM S/PNL WAT(INCLS 47) | 01 |
|
| 54 | 15562602 | NUT,FLR PNL | 02 |
|
| 55 | 15562788 | COVER,PLNM UPR PNL OPG(**VPI 1-877-846-8243) | 01 |
|
| 56 | 15646573 | PANEL,RF FRT HDR | 01 |
|
| 57 | 15553994 | SEAL,RF PNL | AR |
|
| 58 | 88979800 | HINGE KIT,FRT S/D UPR(BODY SI)(INCLS 61,63,65)(PART OF 15)(FOR ADDITIONAL COMPONENTS OF THIS HINGE SEE "CK DOOR HARDWARE/SIDE FRONT" IN GROUP 16.000.) | 01 |
|
| 58 | 88979802 | HINGE KIT,FRT S/D UPR(BODY SI)(INCLS 61,63,65)(PART OF 15)(FOR ADDITIONAL COMPONENTS OF THIS HINGE SEE "CK DOOR HARDWARE/SIDE FRONT" IN GROUP 16.000.) | 01 |
|
| 58 | 19354137 | HINGE KIT,FRT S/D UPR(BODY SI)(INCLS 61,63,65)(PART OF 15)(FOR ADDITIONAL COMPONENTS OF THIS HINGE SEE "CK DOOR HARDWARE/SIDE FRONT" IN GROUP 16.000.) | 01 |
|
| 60 | 15694924 | INSULATOR,PLNM UPR PNL | 01 |
|
| 61 | 11515748 | NUT,M8X1.25X7.1,ZC 10(PART OF 58,64) | AR |
|
| 63 | 11514766 | BOLT,HEX,M8X1.25X25, 22 THD(PART OF 58,64) | AR |
|
| 64 | 12475677 | HINGE KIT,FRT S/D LWR(BODY SI)(INCLS 61,63,65)(PART OF 15)(FOR ADDITIONAL COMPONENTS OF THIS HINGE SEE "CK DOOR HARDWARE/SIDE FRONT" IN GROUP 16.000.) | 01 |
|
| 64 | 12475678 | HINGE KIT,FRT S/D LWR(BODY SI)(INCLS 61,63,65)(PART OF 15)(FOR ADDITIONAL COMPONENTS OF THIS HINGE SEE "CK DOOR HARDWARE/SIDE FRONT" IN GROUP 16.000.) | 01 |
|
| 65 | | PLATE,FRT S/D HGE BKG(PART OF 58,64) | | |
| 67 | 14049810 | PLUG,FLR PNL DRN HOLE(1.00 DIA HOLE W/WASHER)(ROUND)(1.00 DIA HOLE W/WASHER) | 06 |
|
| 69 | 11561025 | BOLT,HFH,M6X1X16,13.5 THD,14.2 OD,GMW25 STL,GMW3200,MACH,HDR-PT | AR |
|
| 70 | 15646504 | PANEL,PLNM LWR | 01 |
|
| 71 | 15018971 | REINFORCEMENT,R/SEAT SHLDR BELT RETR(**VPI 1-877-846-8243) | 01 |
|
| 72 | 15607185 | FILLER,RKR INR PNL(WELDED TO SI OTR PNL LWR RR CORNER) | |
|
| 72 | 15732306 | FILLER,RKR INR PNL(WELDED TO SI OTR PNL LWR RR CORNER) | |
|
| 73 | 25892659 | PLUG,BODY SI INR PNL HOLE(12.980) | 08 |
|
